Detalle del producto
- PRODUCT NAME: 2 HP - ODP - 1725
- PHASETYPE: 1_CAPACITOR START -
- MOTOR ENCLOSURE: ODP
- HORSEPOWER: 2
- KILOWATTS: 1.5
- POLES: 4
- NUMBER SPEEDS: 1
- RPM: 1725
- HERTZ: 60
- VOLTS PRIMARY: 115/230 V
- VOLTS : 115
- VOLTS 2: 230
- FRME : 56
- SHAFT CODE: H
- STATOR DIAMETER: 6.3
- STACK: 4.22
- MOUNTING: RIGID
- MOTOR TYPE: FHP
- OPPOSITE END BEARING: 6203
- SHAFT END BEARING: 6203
- AMBIENT: 40
- ROTATION: CW/CCW
- SERVICE FACTOR: 1.15
- RUNCAPMFD: 70
- RUNCAPVOLTS: 280
- STARTCAPMFD: 649
- SHIPPING WEIGHT: 46
- THERMAL PROTECTION: AUTOMATIC RESET
- BREAKDOWN TORQUE: 273.7
- BREAKDOWN TORQUE UOM: OZFT
- LOCKED ROTOR TORQUE: 342.3
- LOCKED ROTOR TORQUE UOM: OZFT
- INSULATION CLASS: B
- KVA CODE LETTER: J
- LOCKED ROTOR AMPS: 119.5
- NEMA NOMINAL EFFICIENCY: 84.5
- FULL LOAD AMPS PRIMARY: 17.0/8.5
- SERVICE FACTOR AMPS PRIMARY: 19.6/9.8
- Modelo D2CPA2PH
- Ver ficha tecnica y dimensiones
- PRODUCT NAME: 2 HP - ODP - 1725
- PHASETYPE: 1_CAPACITOR START -
- MOTOR ENCLOSURE: ODP
- HORSEPOWER: 2
- KILOWATTS: 1.5
- POLES: 4
- NUMBER SPEEDS: 1
- RPM: 1725
- HERTZ: 60
- VOLTS PRIMARY: 115/230 V
- VOLTS : 115
- VOLTS 2: 230
- FRME : 56
- SHAFT CODE: H
- STATOR DIAMETER: 6.3
- STACK: 4.22
- MOUNTING: RIGID
- MOTOR TYPE: FHP
- OPPOSITE END BEARING: 6203
- SHAFT END BEARING: 6203
- AMBIENT: 40
- ROTATION: CW/CCW
- SERVICE FACTOR: 1.15
- RUNCAPMFD: 70
- RUNCAPVOLTS: 280
- STARTCAPMFD: 649
- SHIPPING WEIGHT: 46
- THERMAL PROTECTION: AUTOMATIC RESET
- BREAKDOWN TORQUE: 273.7
- BREAKDOWN TORQUE UOM: OZFT
- LOCKED ROTOR TORQUE: 342.3
- LOCKED ROTOR TORQUE UOM: OZFT
- INSULATION CLASS: B
- KVA CODE LETTER: J
- LOCKED ROTOR AMPS: 119.5
- NEMA NOMINAL EFFICIENCY: 84.5
- FULL LOAD AMPS PRIMARY: 17.0/8.5
- SERVICE FACTOR AMPS PRIMARY: 19.6/9.8
- Modelo D2CPA2PH
- Ver ficha tecnica y dimensiones
Transmi. de Potencia
por
US MOTORS

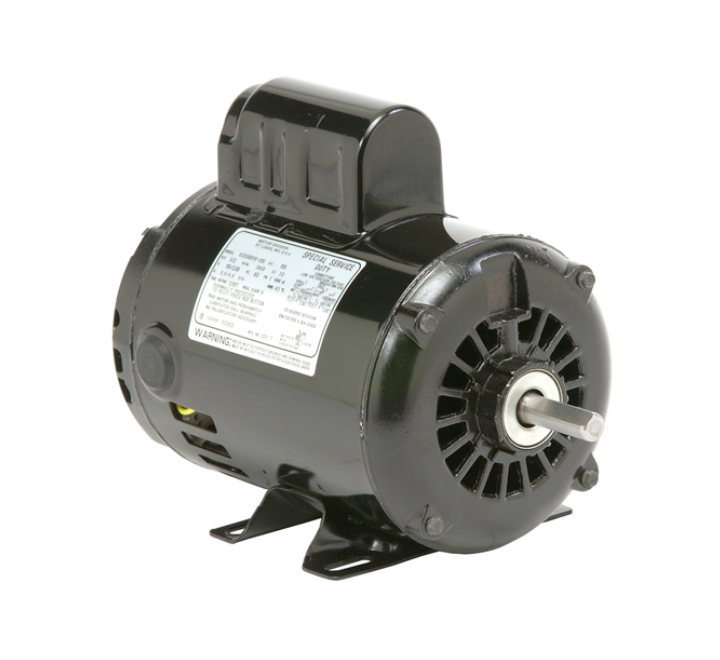

Motor Electrico Monofásico Ac, 2 Hp, 1800 Rpm, Ac 115/230 V, 56C Frame, Odp
Translation missing: es.products.product.sku:HT-00035788
- Precio habitual
- B/. 302.47
- Precio de venta
- B/. 302.47
