Detalle del producto
- PRODUCT NAME: 3 HP - TE - 1765
- PHASETYPE: 3_PHASE
- MOTOR ENCLOSURE: TE
- HORSEPOWER: 3
- KILOWATTS: 2.2
- POLES: 4
- NUMBER SPEEDS: 1
- RPM: 1765
- RPM 2: 1765
- RPM 3: 1755
- HERTZ: 60
- VOLTS PRIMARY: 208-230/460
- VOLTS : 460
- VOLTS 2: 230
- VOLTS 3: 208
- FRME : 182
- SHAFT CODE: T
- MOUNTING: HORZ-FOOTED
- ASSEMBLY POSITION: F1
- MOTOR TYPE: SE
- OPPOSITE END BEARING: 6205-2Z-J/C3
- SHAFT END BEARING: 6206-2Z-J/C3
- AMBIENT: 40
- ROTATION: DUAL
- SERVICE FACTOR: 1.15
- STARTCAPMFD: N\A
- SHIPPING WEIGHT: 85
- BREAKDOWN TORQUE: 379
- BREAKDOWN TORQUE UOM: PERCENT OF FLT
- LOCKED ROTOR TORQUE: 242
- LOCKED ROTOR TORQUE UOM: PERCENT OF FLT
- INSULATION CLASS: F
- KVA CODE LETTER: K
- LOCKED ROTOR AMPS: 31
- NEMA NOMINAL EFFICIENCY: 89.5
- FULL LOAD AMPS PRIMARY: 8.4-7.8/3.9
- SERVICE FACTOR AMPS PRIMARY: 9.6-8.8/4.4
- Modelo: S3P2A
- Ver ficha tecnica y dimensiones
- PRODUCT NAME: 3 HP - TE - 1765
- PHASETYPE: 3_PHASE
- MOTOR ENCLOSURE: TE
- HORSEPOWER: 3
- KILOWATTS: 2.2
- POLES: 4
- NUMBER SPEEDS: 1
- RPM: 1765
- RPM 2: 1765
- RPM 3: 1755
- HERTZ: 60
- VOLTS PRIMARY: 208-230/460
- VOLTS : 460
- VOLTS 2: 230
- VOLTS 3: 208
- FRME : 182
- SHAFT CODE: T
- MOUNTING: HORZ-FOOTED
- ASSEMBLY POSITION: F1
- MOTOR TYPE: SE
- OPPOSITE END BEARING: 6205-2Z-J/C3
- SHAFT END BEARING: 6206-2Z-J/C3
- AMBIENT: 40
- ROTATION: DUAL
- SERVICE FACTOR: 1.15
- STARTCAPMFD: N\A
- SHIPPING WEIGHT: 85
- BREAKDOWN TORQUE: 379
- BREAKDOWN TORQUE UOM: PERCENT OF FLT
- LOCKED ROTOR TORQUE: 242
- LOCKED ROTOR TORQUE UOM: PERCENT OF FLT
- INSULATION CLASS: F
- KVA CODE LETTER: K
- LOCKED ROTOR AMPS: 31
- NEMA NOMINAL EFFICIENCY: 89.5
- FULL LOAD AMPS PRIMARY: 8.4-7.8/3.9
- SERVICE FACTOR AMPS PRIMARY: 9.6-8.8/4.4
- Modelo: S3P2A
- Ver ficha tecnica y dimensiones
Transmi. de Potencia
por
US MOTORS

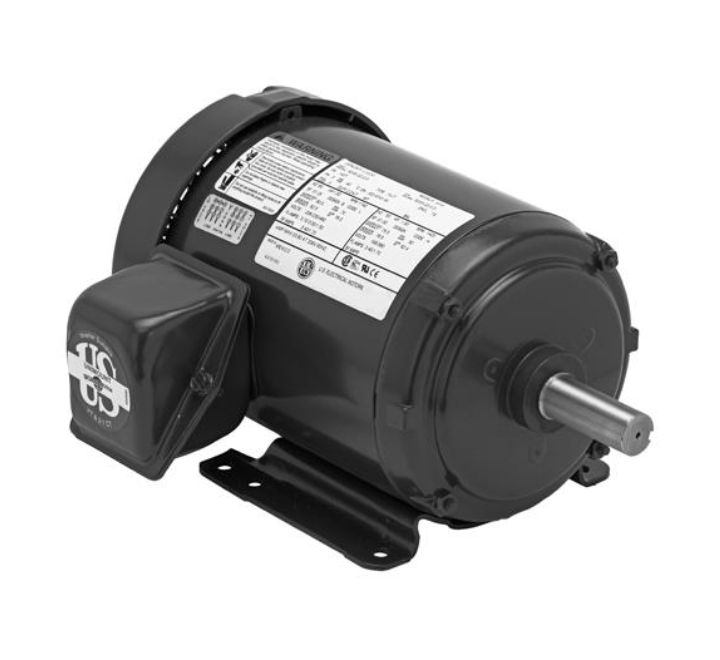

Motor Electrico Trifásico 3 Hp, 1800 Rpm,Ac 208-230/460 V, 182T Frame, Te
Translation missing: es.products.product.sku:S3P2A US MOTORS
- Precio habitual
- B/. 505.01
- Precio de venta
- B/. 505.01
- Precio habitual
-
Envío calculado al finalizar la compra.
No se pudo cargar la disponibilidad de retiro
Entrega a nivel nacional
Compra desde tu casa u oficina y nosotros nos encargamos del resto, en un plazo de 24 a 72 horas
