Detalle del producto

  • PRODUCT NAME: 7.5 HP - TEFC-IP54 - 1770
  • PHASETYPE: 3_PHASE
  • MOTOR ENCLOSURE: TEFC-IP54
  • HORSEPOWER: 7.5
  • KILOWATTS: 5.6
  • POLES: 4
  • NUMBER SPEEDS: 1
  • RPM: 1770
  • RPM 2: 1770
  • RPM 3: 1765
  • RPM 4: 1465
  • RPM 5: 1465
  • HERTZ: 60
  • HERTZ 2: 50
  • VOLTS PRIMARY: 230/460
  • VOLTS : 460
  • VOLTS 2: 230
  • VOLTS 3: 208
  • VOLTS 4: 400
  • VOLTS 5: 200
  • FRME : 213
  • SHAFT CODE: T
  • MOUNTING: HORZ-FOOTED
  • ASSEMBLY POSITION: F1
  • MOTOR TYPE: CTE
  • OPPOSITE END BEARING: 6206-2Z-J/C3
  • SHAFT END BEARING: 6208-2Z-J/C3
  • AMBIENT: 40
  • ROTATION: DUAL
  • SERVICE FACTOR: 1.15
  • STARTCAPMFD: N\A
  • SHIPPING WEIGHT: 154
  • BREAKDOWN TORQUE: 288
  • BREAKDOWN TORQUE UOM: PERCENT OF FLT
  • LOCKED ROTOR TORQUE: 223
  • LOCKED ROTOR TORQUE UOM: PERCENT OF FLT
  • INSULATION CLASS: F
  • KVA CODE LETTER: H
  • LOCKED ROTOR AMPS: 66.1
  • NEMA NOMINAL EFFICIENCY: 91.7
  • FULL LOAD AMPS PRIMARY: 19.1/9.6
  • SERVICE FACTOR AMPS PRIMARY: 21.7/10.9
  • Modelo HD7P2E
  • Ver ficha tecnica y dimensiones
  • PRODUCT NAME: 7.5 HP - TEFC-IP54 - 1770
  • PHASETYPE: 3_PHASE
  • MOTOR ENCLOSURE: TEFC-IP54
  • HORSEPOWER: 7.5
  • KILOWATTS: 5.6
  • POLES: 4
  • NUMBER SPEEDS: 1
  • RPM: 1770
  • RPM 2: 1770
  • RPM 3: 1765
  • RPM 4: 1465
  • RPM 5: 1465
  • HERTZ: 60
  • HERTZ 2: 50
  • VOLTS PRIMARY: 230/460
  • VOLTS : 460
  • VOLTS 2: 230
  • VOLTS 3: 208
  • VOLTS 4: 400
  • VOLTS 5: 200
  • FRME : 213
  • SHAFT CODE: T
  • MOUNTING: HORZ-FOOTED
  • ASSEMBLY POSITION: F1
  • MOTOR TYPE: CTE
  • OPPOSITE END BEARING: 6206-2Z-J/C3
  • SHAFT END BEARING: 6208-2Z-J/C3
  • AMBIENT: 40
  • ROTATION: DUAL
  • SERVICE FACTOR: 1.15
  • STARTCAPMFD: N\A
  • SHIPPING WEIGHT: 154
  • BREAKDOWN TORQUE: 288
  • BREAKDOWN TORQUE UOM: PERCENT OF FLT
  • LOCKED ROTOR TORQUE: 223
  • LOCKED ROTOR TORQUE UOM: PERCENT OF FLT
  • INSULATION CLASS: F
  • KVA CODE LETTER: H
  • LOCKED ROTOR AMPS: 66.1
  • NEMA NOMINAL EFFICIENCY: 91.7
  • FULL LOAD AMPS PRIMARY: 19.1/9.6
  • SERVICE FACTOR AMPS PRIMARY: 21.7/10.9
  • Modelo HD7P2E
  • Ver ficha tecnica y dimensiones
Retira en tienda
O te lo llevamos a tu casa u oficina!
Transmi. de Potencia por US MOTORS

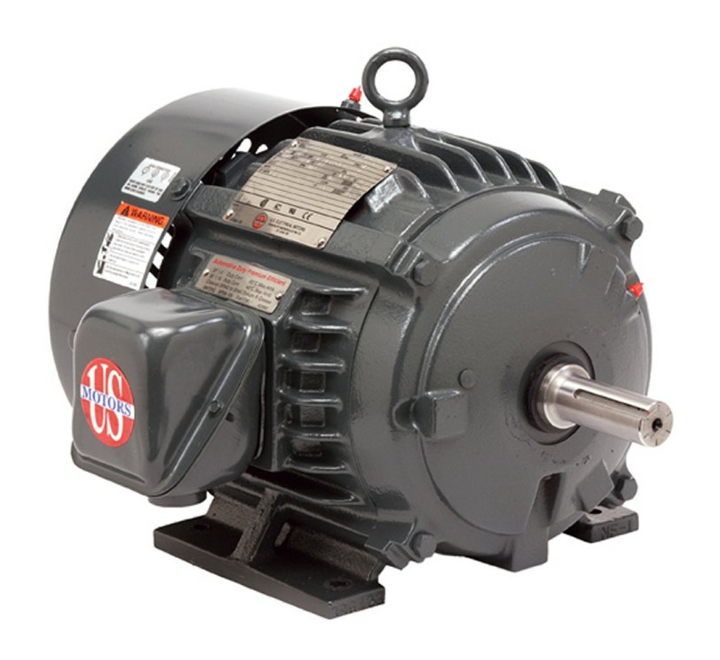

Motor Electrico Trifásico 7-1/2 Hp, 1770 Rpm,Ac 230/460 V, 213T Frame, Tefc

Translation missing: es.products.product.sku:HD7P2E GE03 US MOTORS

Precio habitual
B/. 777.62
Precio de venta
B/. 777.62
Precio habitual
Envío calculado al finalizar la compra.
Entrega a nivel nacional
Compra desde tu casa u oficina y nosotros nos encargamos del resto, en un plazo de 24 a 72 horas
